Description

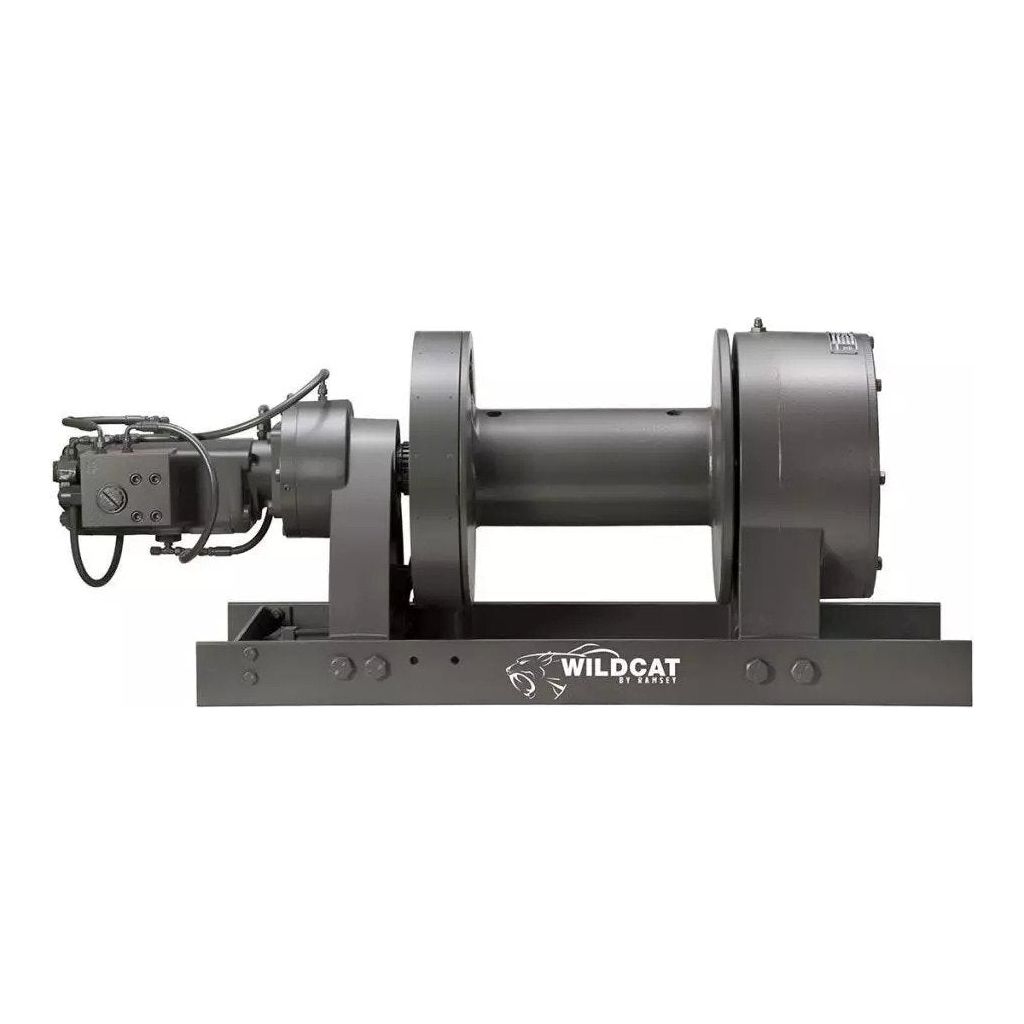

Ramsey Winch’s WILDCAT™ Planetary Winch Series was developed specifically to meet the challenges and demands in the oilfield. All made in the USA Wildcat™ Series winches meet SAE J706 standards and have oilfield-proven features for precision lifting, lowering, and load suspension. The WILDCAT™ Winch Series one piece spline, free spool clutch and highly efficient planetary gear set means reliable power to get the job done. With first layer line pulls from 50,000 lbs. to 130,000 lbs., Ramsey has the right winch for your oil and gas application. Large line pull winches that are primarily used in oil exploration. The WILDCAT™ Winch Series are mainly for moving frac tanks, rigs, heavy equipment, etc. They are mounted on large semi-trucks and then used to pull equipment around well sites or pull equipment onto large low boy trailers.
Features
• 50,000 lbs 1st layer pull
• 2-Year Warranty
• Fast line speed, up to 41 ft/min under full load
• Oil-impregnated bronze drum bushings, eliminates external drum grease zerks for less field maintenance
• Heavy-duty clutch yoke, designed for easy access field maintenance
• Heavy-duty shafts, for strength and durability
• Symmetrical design, for streamline mounting
• Heavy-duty clutch splined directly to shaft, for strength and reliability
• 2 speed gear motor
• Highly efficient planetary gear set
• Spring applied hydraulic released brake, for superior load control
• Sprag clutch, for precise load placement
• Air actuated band brake
• Clutch indicator switch
• Oilfield proven free spool clutch
• Meets SAE-J706
• Made in the USA
