Description

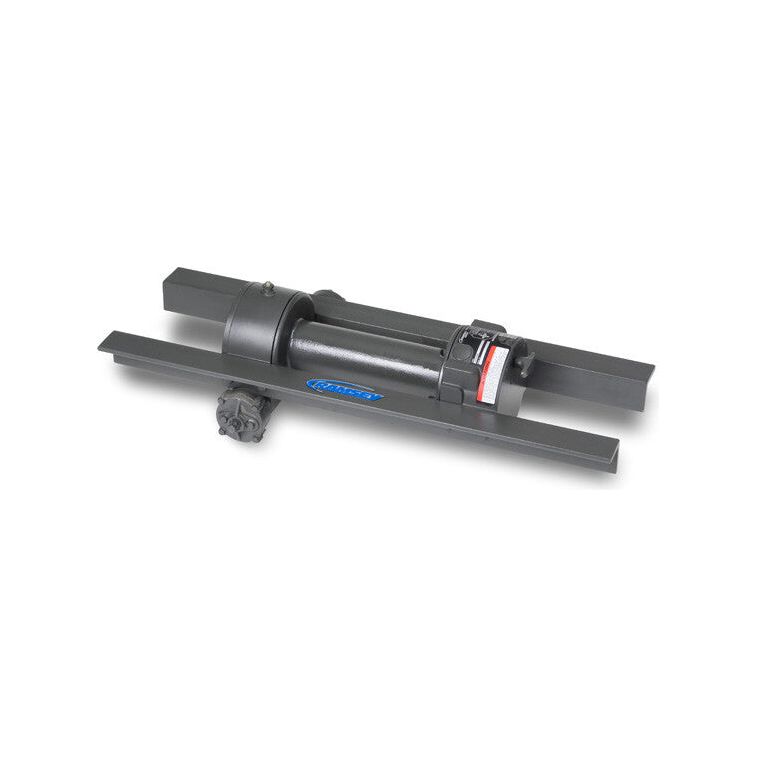

One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey Ram-Lok Winches are used on most Chevron and many other tow trucks and car carriers. These winches are just the basic winch with no hydraulic motor. This makes it more economical to replace your old winch rather than to repair it.
Features
• Line Pull: 8,000 lbs
• Clutch: Ram-Lok
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended cable 3/8
• Meets SAE-J706
• Made in the USA
• Additional Motor Options: Must call
• Motor Included: No angles included
• Recommend Cable Size: 3/8" / 9.5mm
• Made in the USA for an alternative winch
• 1st Layer Line Speed: 28'/min / 8.5m/min
• Towing & Recovery (Carrier) (Light Wrecker)
• Clutch Type: Blocked, RAM-LOK, DOW-LOK
• Hydraulic Flow Required: 15.0 GPM (57 LPM)
• Lever Style Clutch Control: Air, manual, electric
• Hydraulic Pressure Required: 2,375 PSI (164 Bar)
• Applications replaces Century Car Carrier OEM Winches
• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• Adjustable/Automatic Brake: No fast line speed recommended
• Replaces Vulcan, Champion, and Challenger Car Carrier OEM Winches
• Mounting Configuration: Front right overwind side/rear overwind left side gear
• Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
• General Industrial Mining & Construction Railroad Specialty Vehicle Towing & Recovery
• Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (auxiliary brake)
