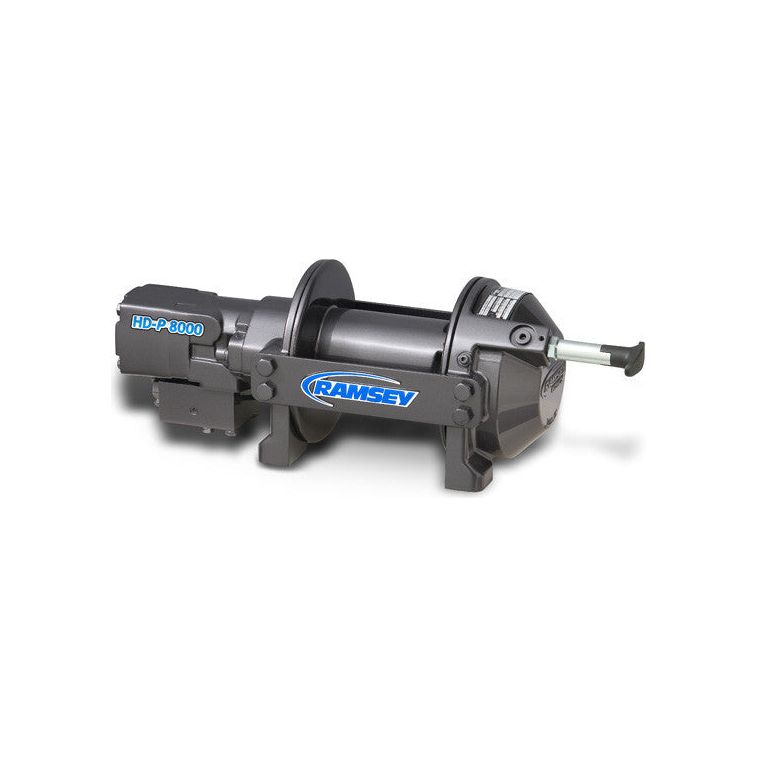

Ramsey Winch HDP 8,000-Y

Features • Rated Line Pull: 8,000 lbs / 3,629 Kg • Note: Rated line pull is...

Write a review

$1,992.92 -Liquid error (snippets/product-price line 34): Computation results in '-Infinity'%

$1,992.92

SKU : HD-P-8000-y-2

Availability : 0 In Stock Out of stock 0

Translation missing: en.products.product.product_variants

Quantity

Features

• Rated Line Pull: 8,000 lbs / 3,629 Kg

• Note: Rated line pull is based on the first layer of the cable

• 1st Layer Line Speed: 50 Ft/Min / 15.2 M/Min

• Gear Ratio: 5:1:1

• Weight w/o Cable: 76 lbs / 34 Kg

• Brake: Yes

• Cable: None

• Drum Size (L x F x B): 6.50 x 8.25 x 3.94 In / 165.1 x 209.6 x 100.1 MM

• Cable Capacity: 115 Ft / 35.1 M

• Recommended Cable Size: 3/8 In / 9.5 MM

• Hydraulic Pressure Required: 2,500 PSI (172 Bar)

• Hydraulic Flow Required: 15.0 GPM (57 LPM)

• Motor Size: 14.9 Cu. In. (244 cc)

• Additional Motor Options: None

• Clutch Type: Sliding Pin

• Clutch Control: Air, Manual

• Hydraulic Flow Required: 15 GPM

• Motor: 15 Cu. In.

• Additional Motor Options: None

• Clutch Type: Sliding Pin
