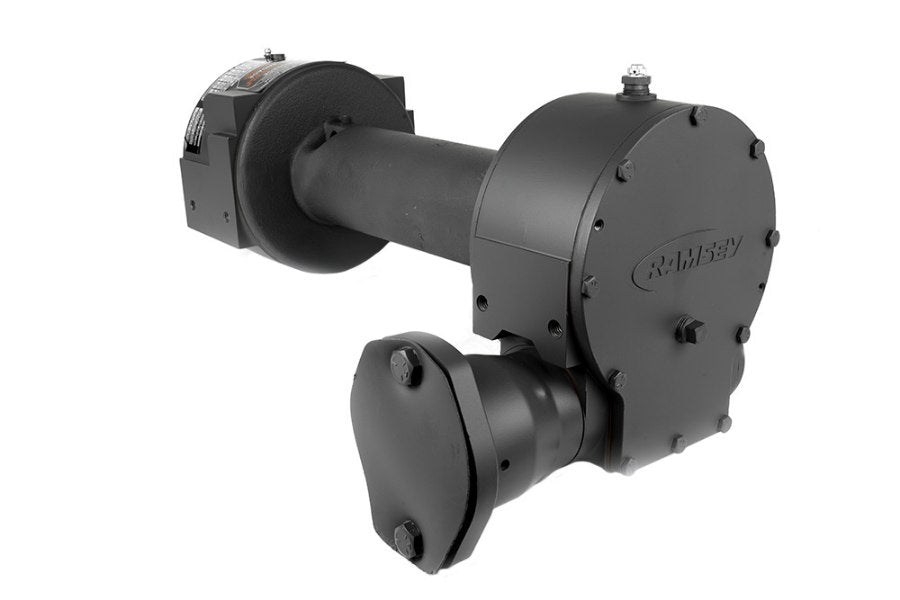

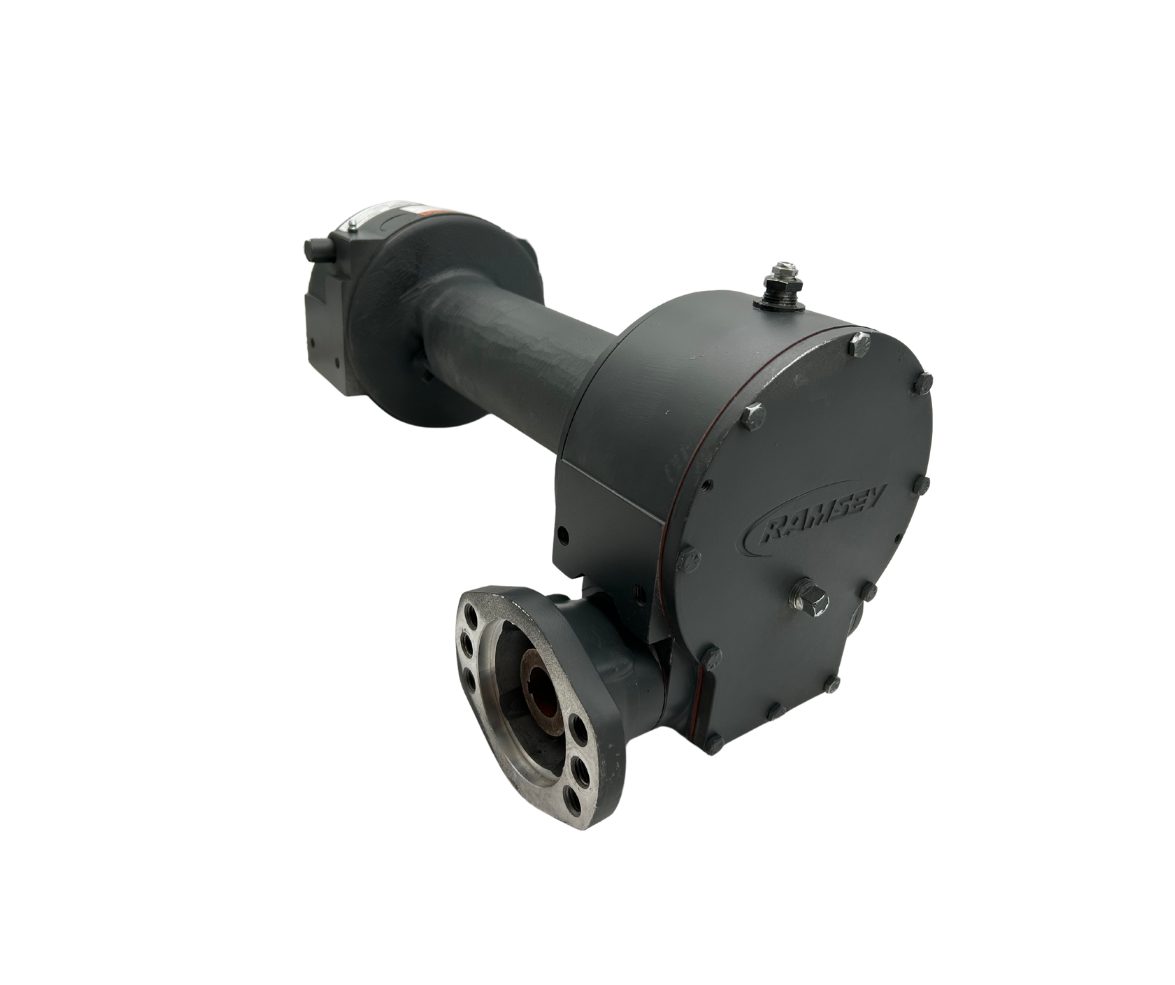

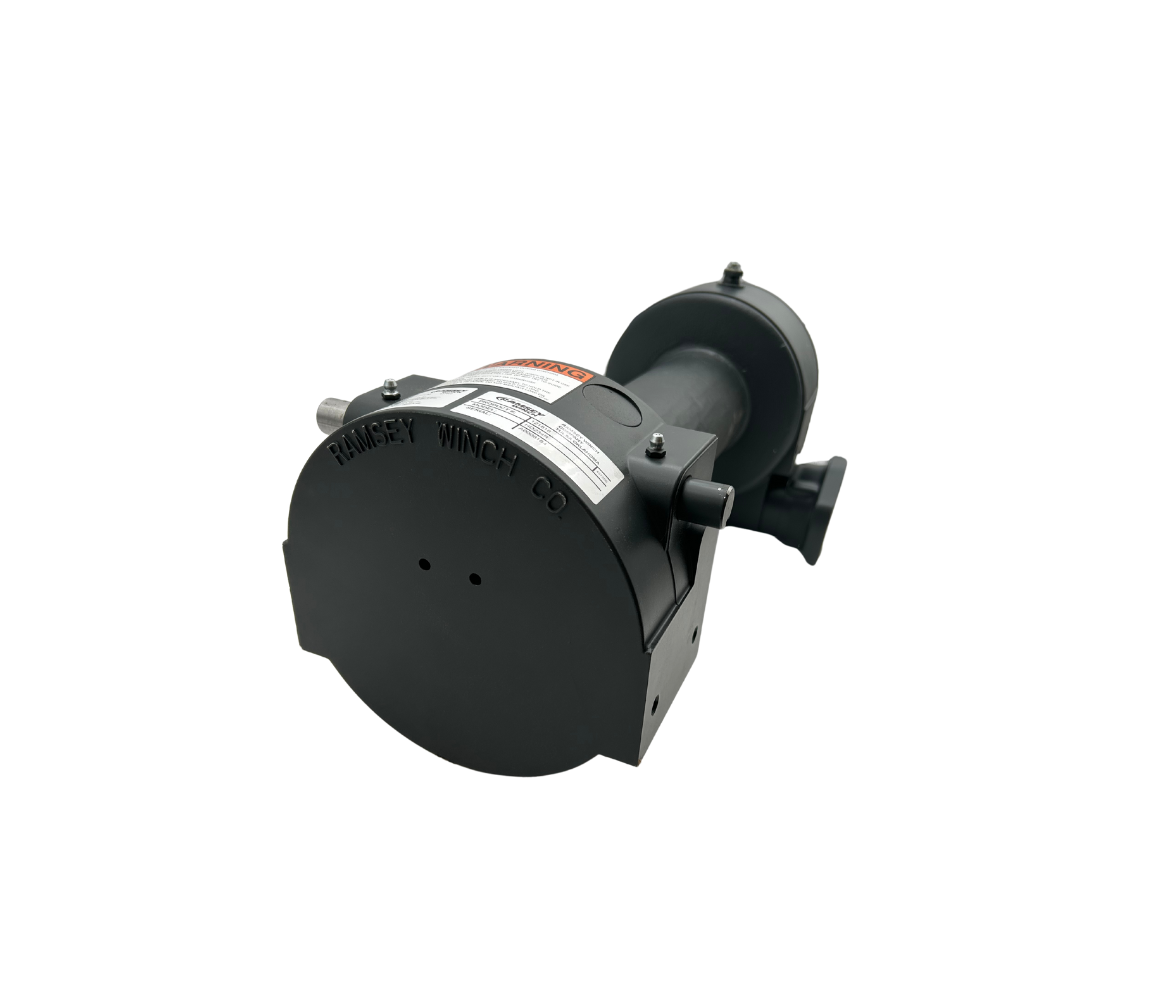

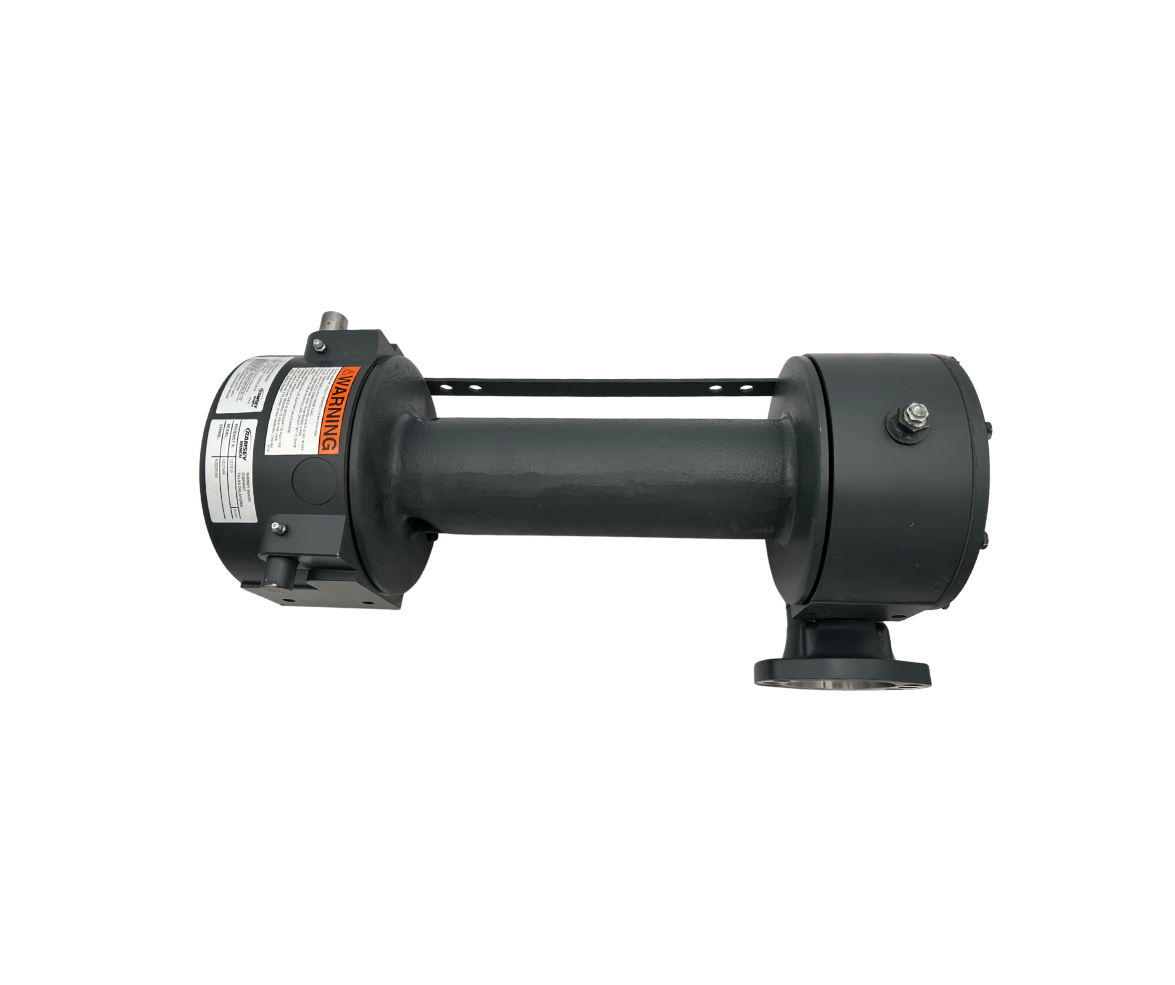

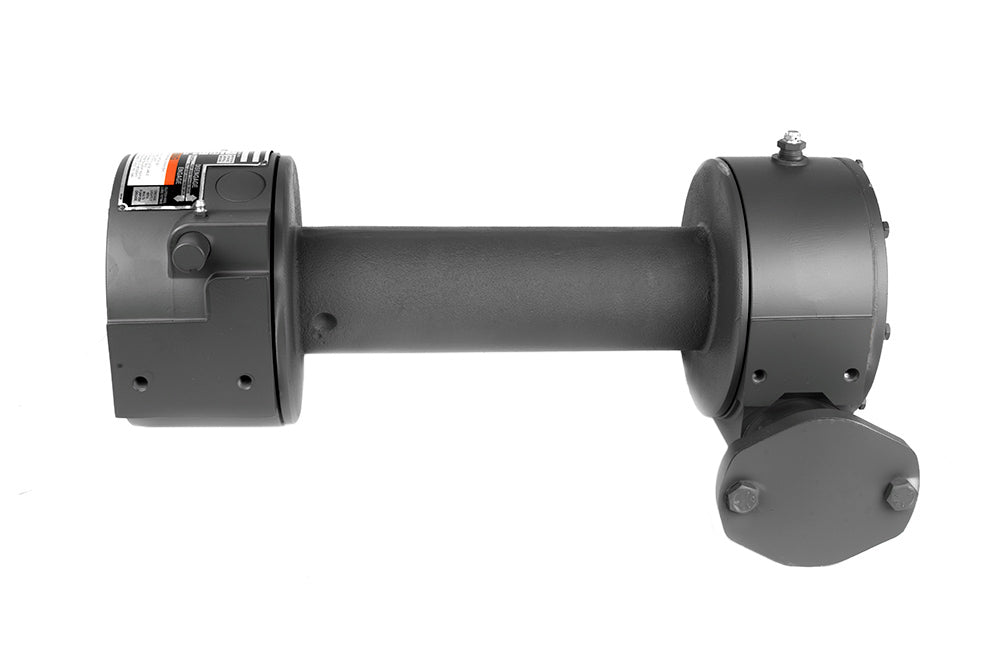

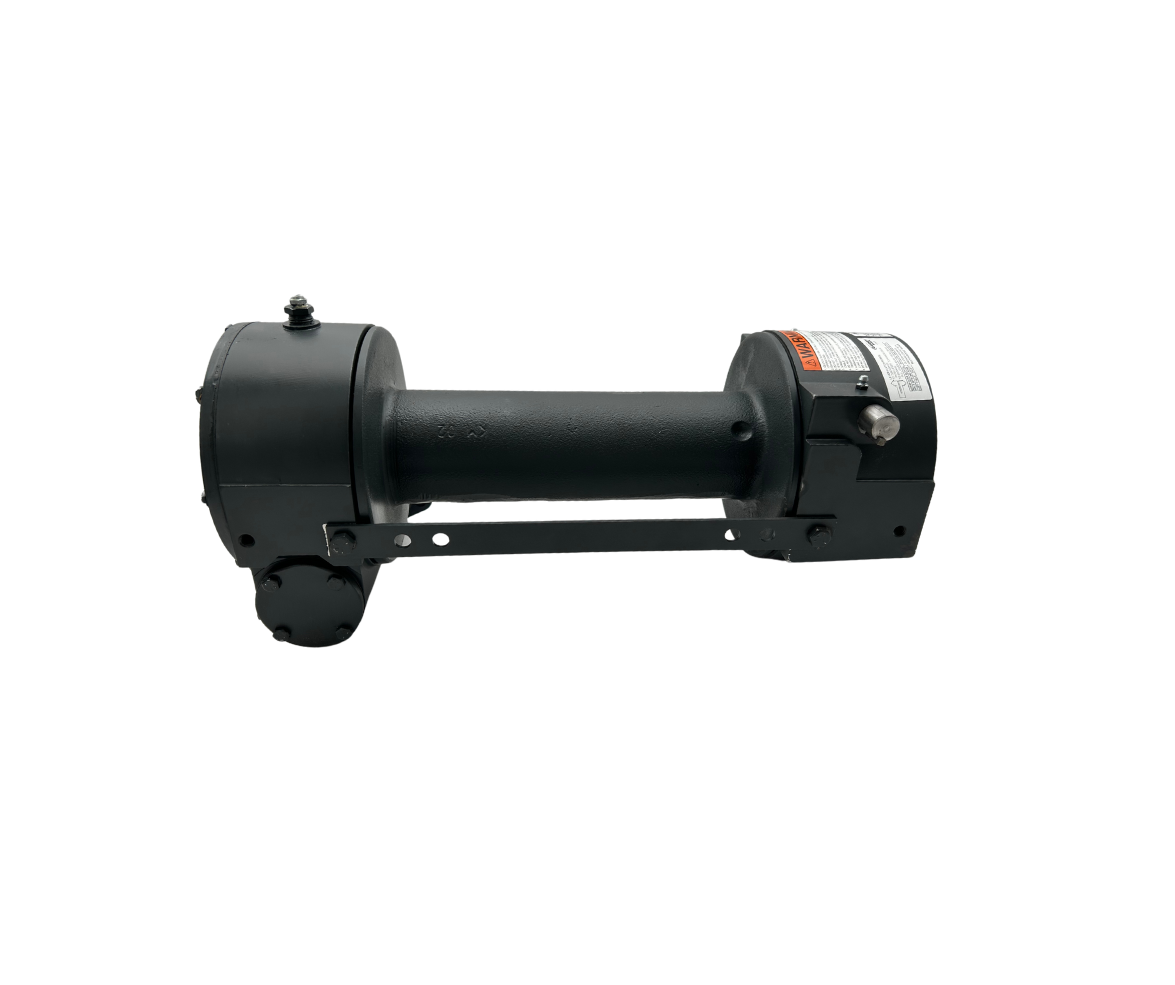

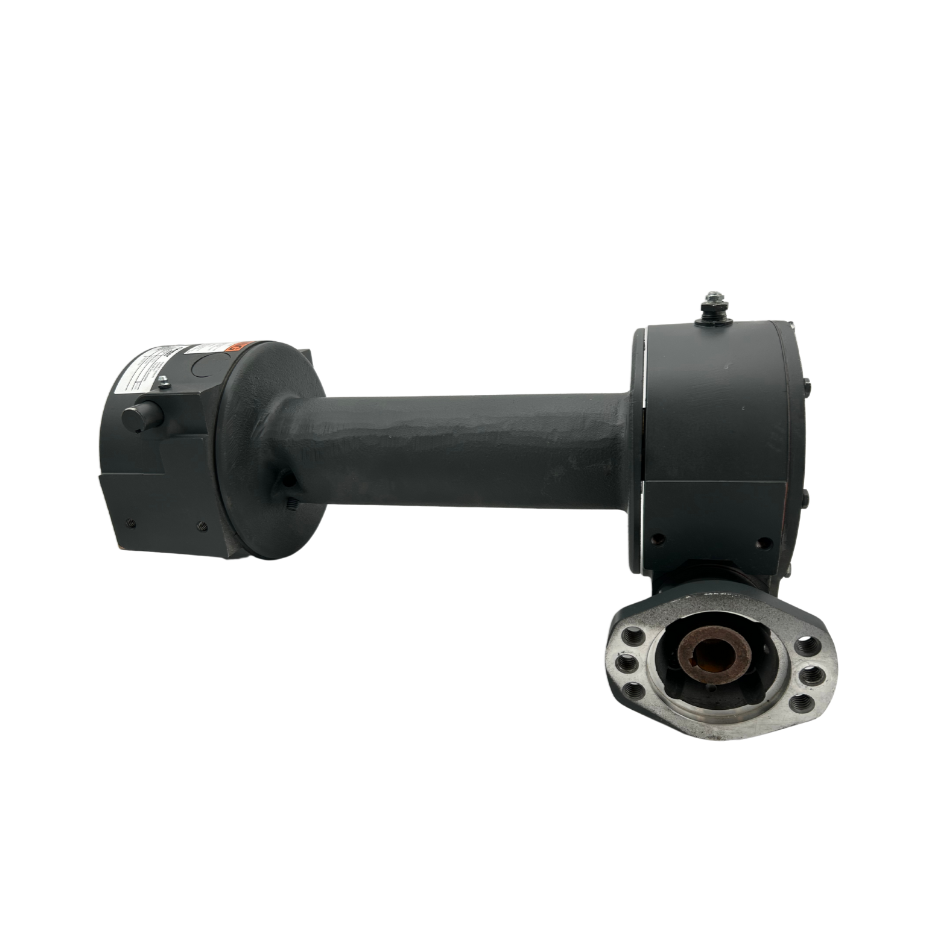

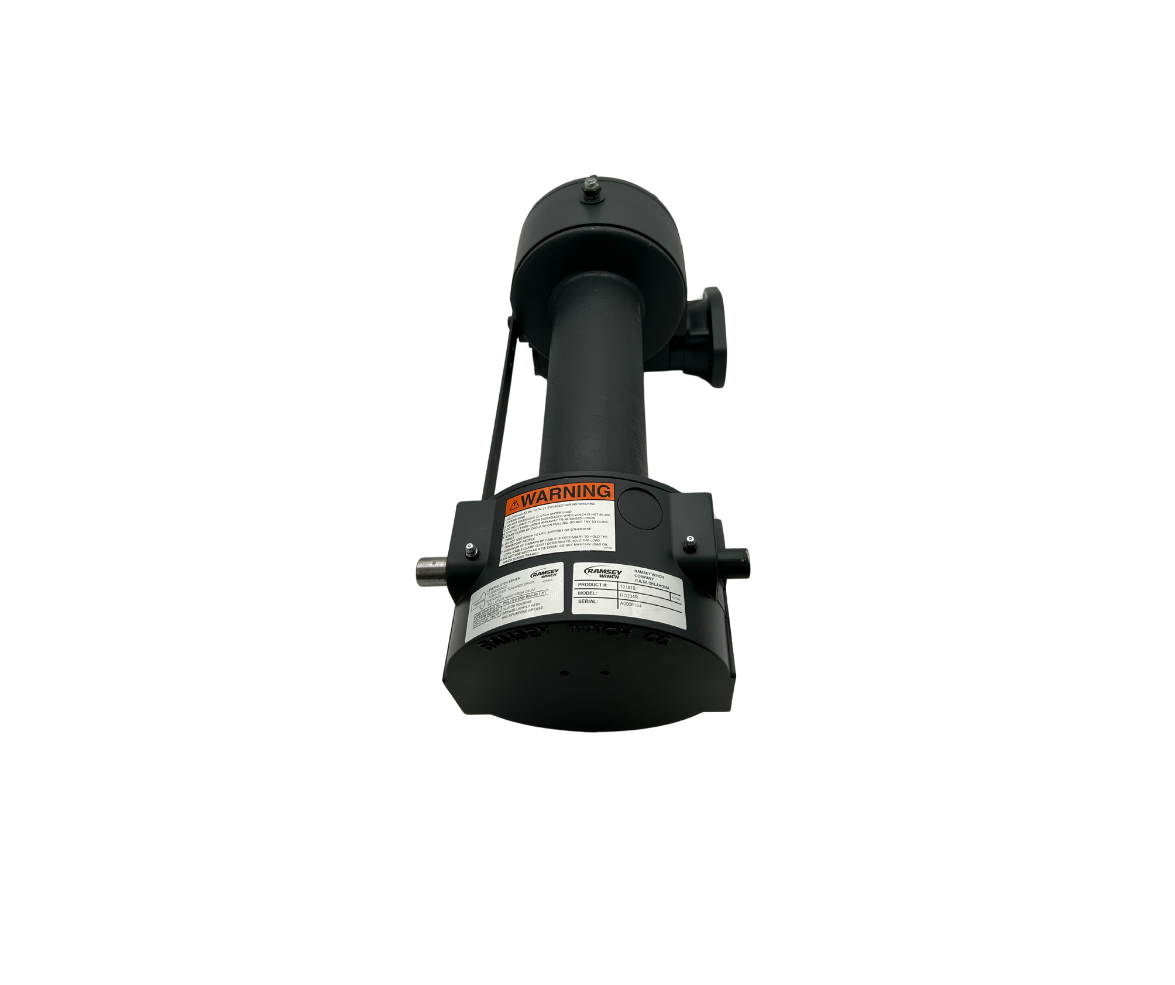

Ramsey Hydraulic Worm Winch | HD-234R FORS With Lever Release | 8000lb

Discover the unparalleled reliability and efficiency of the HD-234R Ramsey Winch, a cornerstone in the Towing & Recovery industry. Designed with the rigorous demands of tow trucks and car carriers in mind, this 8,000 lb. workhorse excels where others falter. Without the complexity of a hydraulic motor, the HD-234R offers a straightforward, cost-effective solution for replacing old winches, ensuring your operations never skip a beat. Boasting a robust 34:1 gear ratio and accommodating a recommended 3/8" cable, this winch is built for the long haul. Its front overwind right side/rear overwind left side mounting configuration makes it a versatile fit for most Chevron and many other vehicles, proving its worth across diverse towing tasks. Proudly made in the USA and compliant with SAE-J706 standards, the HD-234R Ramsey Winch is not just a purchase but an investment in efficiency and reliability for towing and recovery professionals.

Features

• Cable: 3/8"

 • Ratio: 34:1

• Clutch: Lever

• Gear Ratio: 34:1

•  Length: 11"+-/16"

•  Meets SAE-J706

• Line Pull: 8,000 lbs

• Cable Capacity: 140' / 42.7m

• Motor Size: 3.6 Cu. In. (59 cc)

• Weight w/o Cable: 110 lbs / 50 Kg

• Additional Motor Options: Must call

• Motor Included: No angles included

• Recommend Cable Size: 3/8" / 9.5mm

• Made in the USA for an alternative winch

• 1st Layer Line Speed: 28'/min / 8.5m/min

• Towing & Recovery (Carrier) (Light Wrecker)

• Clutch Type: Blocked, RAM-LOK, DOW-LOK

• Hydraulic Flow Required: 15.0 GPM (57 LPM)

• Lever Style Clutch Control: Air, manual, electric

• Hydraulic Pressure Required: 2,375 PSI (164 Bar)

• Applications replaces Century Car Carrier OEM Winches

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)

• Adjustable/Automatic Brake: No fast line speed recommended

• Replaces Vulcan, Champion, and Challenger Car Carrier OEM Winches

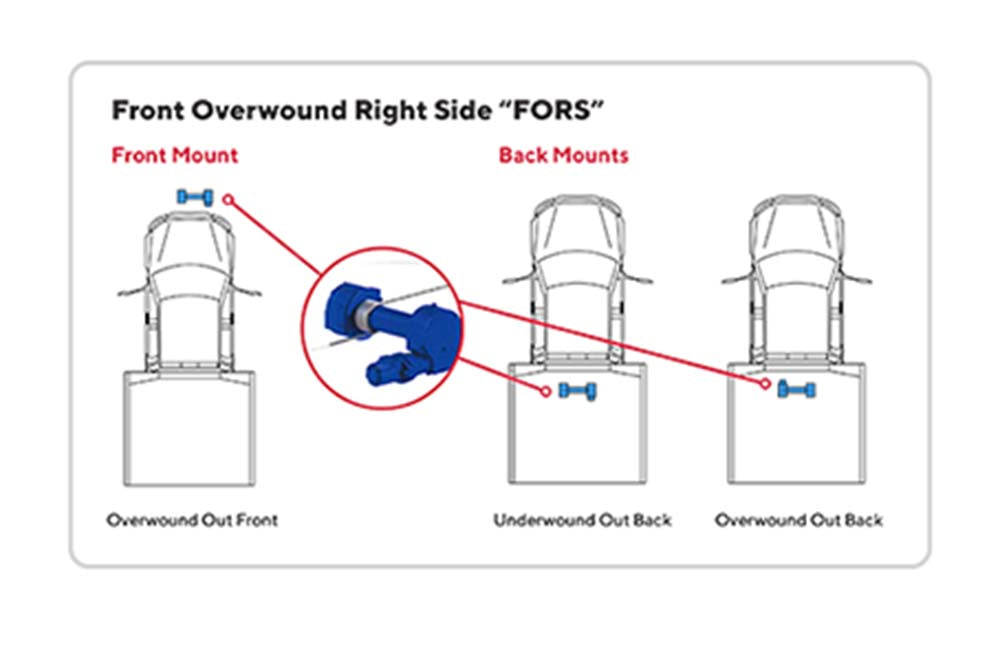

• Mounting Configuration: Front right overwind side/rear overwind left side gear

• Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm

• General Industrial Mining & Construction Railroad Specialty Vehicle Towing & Recovery

• Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (auxiliary brake)

Part # 121818

Replaces Chevron Car Carrier OEM Winches
Replaces Jerr-Dan Car Carrier OEM Winches
Replaces Miller Car Carrier OEM Winches
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer
