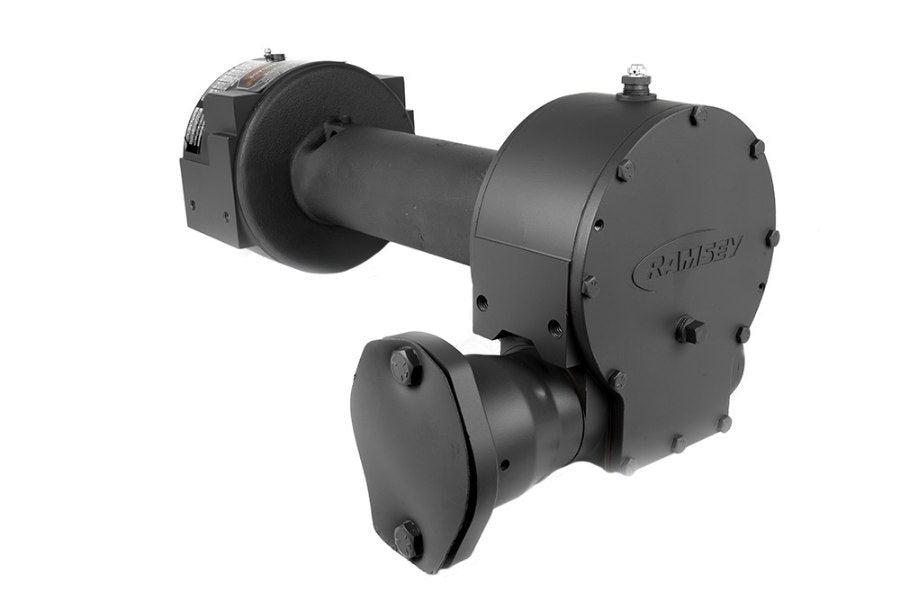

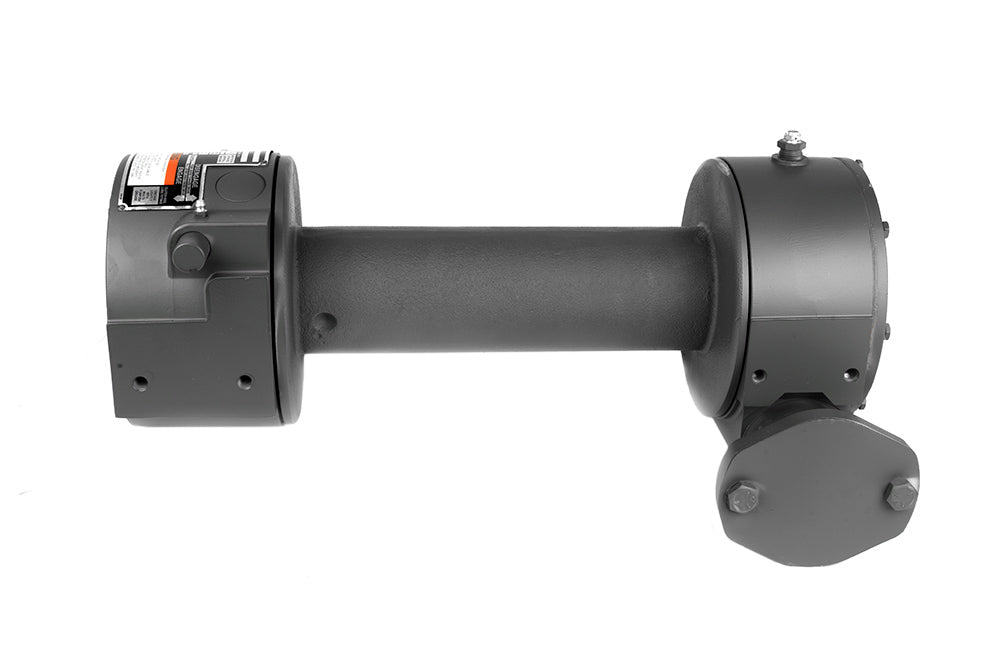

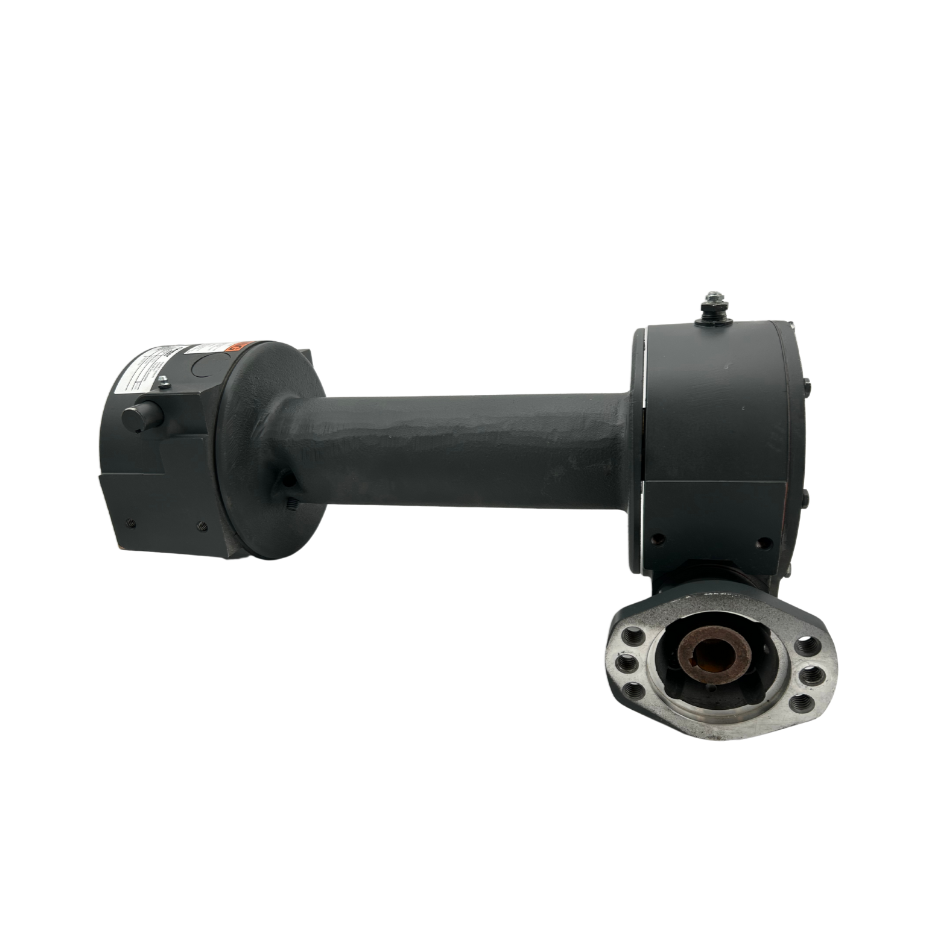

Ramsey HD-234R FORS With Lever Release- 121818

Regular price $1,235.99
Sale price $1,235.99 Regular price
Unit price
per
Sale
Sold out

    Discover the unparalleled reliability and efficiency of the HD-234R Ramsey Winch, a cornerstone in the Towing & Recovery industry. Designed with the rigorous demands of tow trucks and car carriers in mind, this 8,000 lb. workhorse excels where others falter. Without the complexity of a hydraulic motor, the HD-234R offers a straightforward, cost-effective solution for replacing old winches, ensuring your operations never skip a beat. Boasting a robust 34:1 gear ratio and accommodating a recommended 3/8" cable, this winch is built for the long haul. Its front overwind right side/rear overwind left side mounting configuration makes it a versatile fit for most Chevron and many other vehicles, proving its worth across diverse towing tasks. Proudly made in the USA and compliant with SAE-J706 standards, the HD-234R Ramsey Winch is not just a purchase but an investment in efficiency and reliability for towing and recovery professionals.

    Features

    • Cable: 3/8"

     • Ratio: 34:1

    • Clutch: Lever

     Gear Ratio: 34:1

    •  Length: 11"+-/16"

    •  Meets SAE-J706

     Line Pull: 8,000 lbs

     Cable Capacity: 140' / 42.7m

     Motor Size: 3.6 Cu. In. (59 cc)

     Weight w/o Cable: 110 lbs / 50 Kg

     Additional Motor Options: Must call

     Motor Included: No angles included

     Recommend Cable Size: 3/8" / 9.5mm

     Made in the USA for an alternative winch

     1st Layer Line Speed: 28'/min / 8.5m/min

     Towing & Recovery (Carrier) (Light Wrecker)

     Clutch Type: Blocked, RAM-LOK, DOW-LOK

     Hydraulic Flow Required: 15.0 GPM (57 LPM)

    • Lever Style Clutch Control: Air, manual, electric

     Hydraulic Pressure Required: 2,375 PSI (164 Bar)

     Applications replaces Century Car Carrier OEM Winches

     Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)

     Adjustable/Automatic Brake: No fast line speed recommended

     Replaces Vulcan, Champion, and Challenger Car Carrier OEM Winches

     Mounting Configuration: Front right overwind side/rear overwind left side gear

     Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm

    • General Industrial Mining & Construction Railroad Specialty Vehicle Towing & Recovery

     Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (auxiliary brake)



    Part # 121818
